Middleton Station Dimensions

[SamuelMClark]

I was just wondering does anyone have the dimensions of the station or an HO scaled dimensions. I don't have a car and live in HRM so I'm not able to go up and measure out the building.

Cheers

[SamuelMClark]

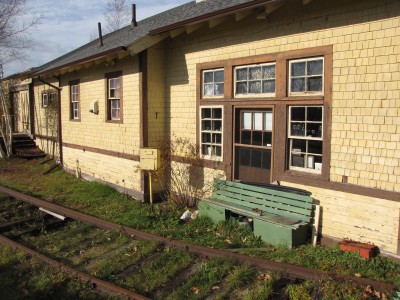

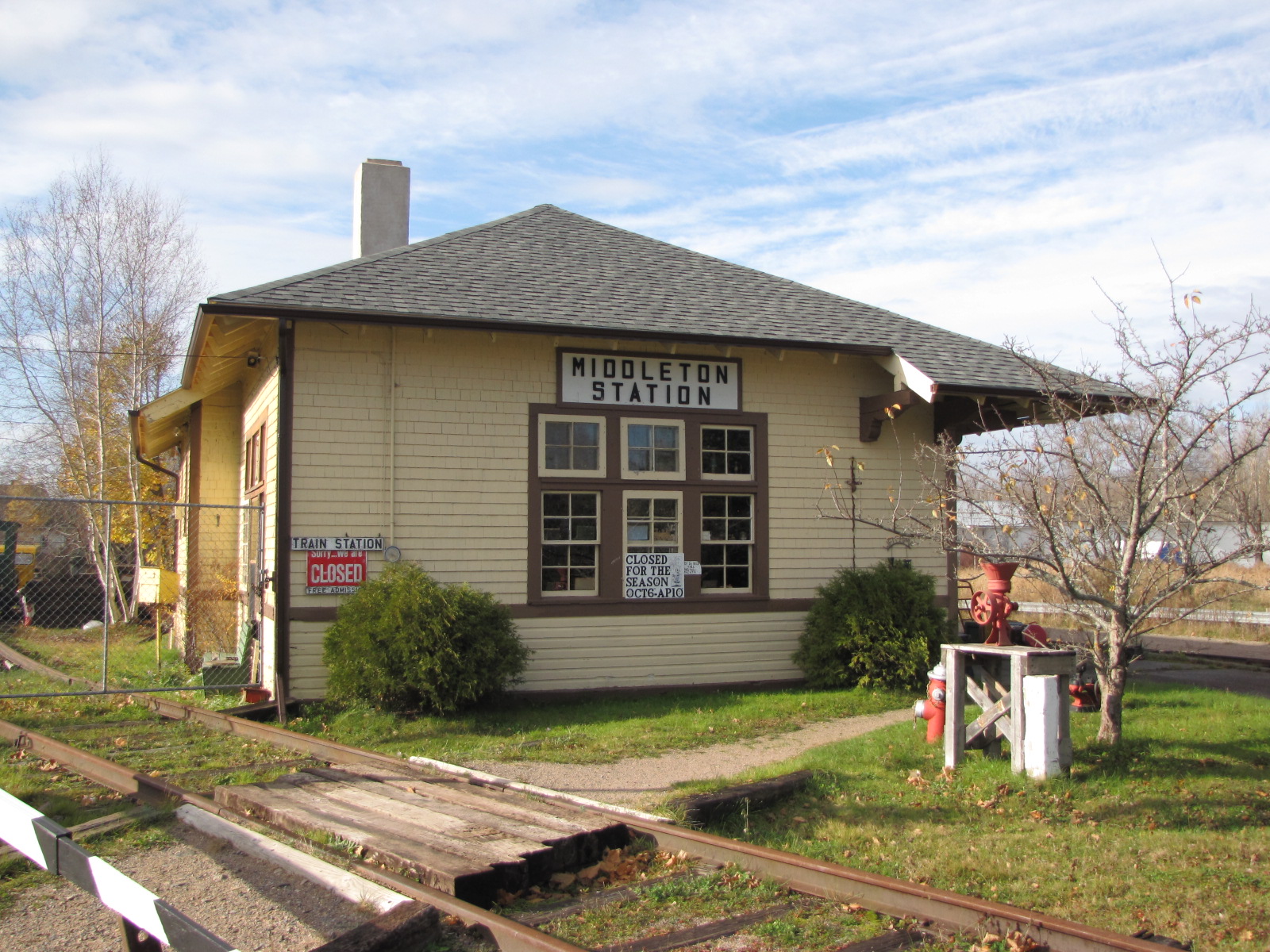

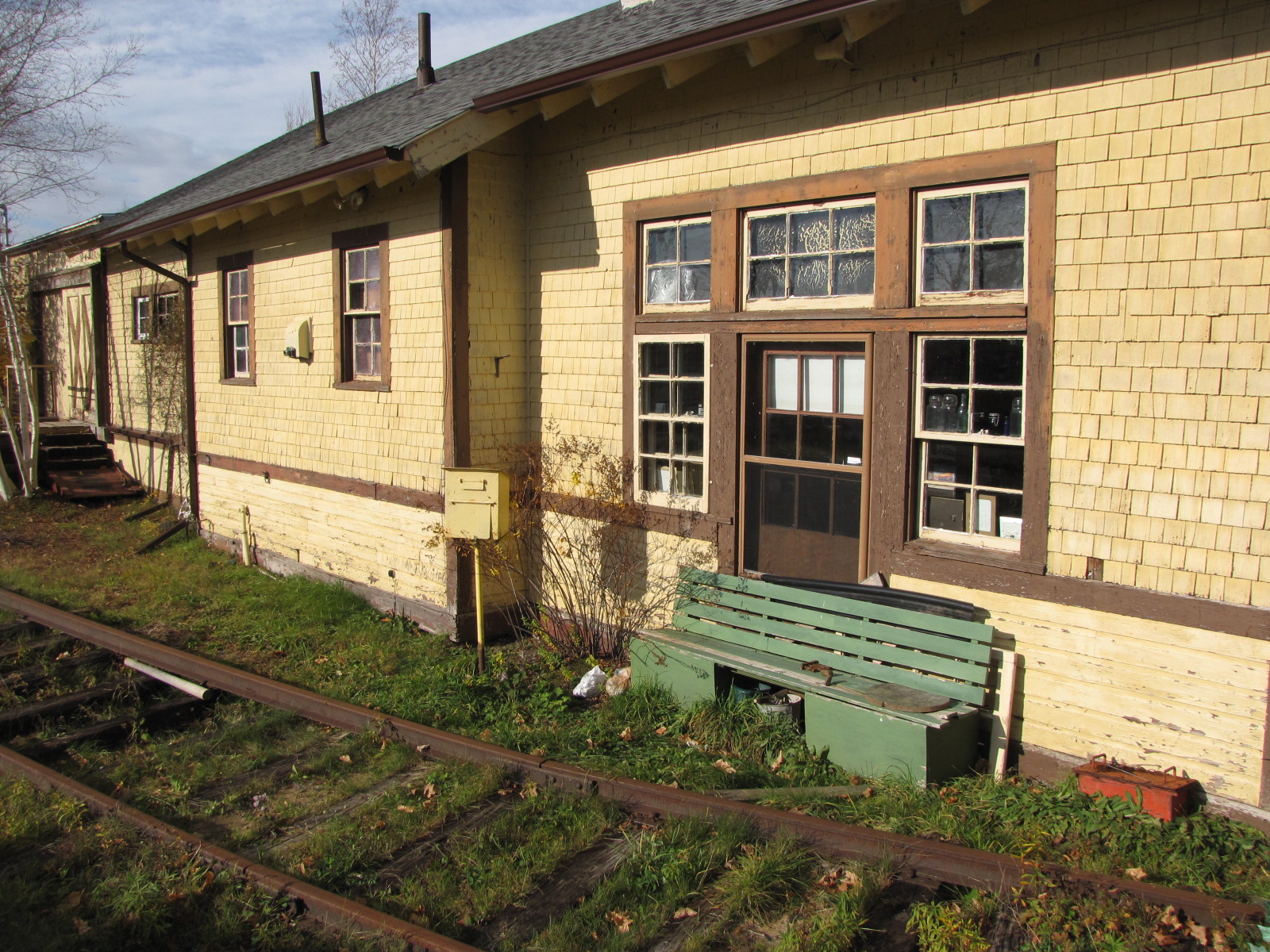

So I was up in Middleton on the 13th of November there and I got some basic measurements of the station was only able to measure about 1/2 of the building. I'll be posting them once I draw up some basic plans and add the pictures I took.

[stem]

Any chance of an AutoCAD drawing?

[SamuelMClark]

Sorry more then likely not in AutoCAD, as I don't have the program and I've never used it. I should actually get on that and start on the east side of the building. Need to go back in the summer to get full measurements of the building.

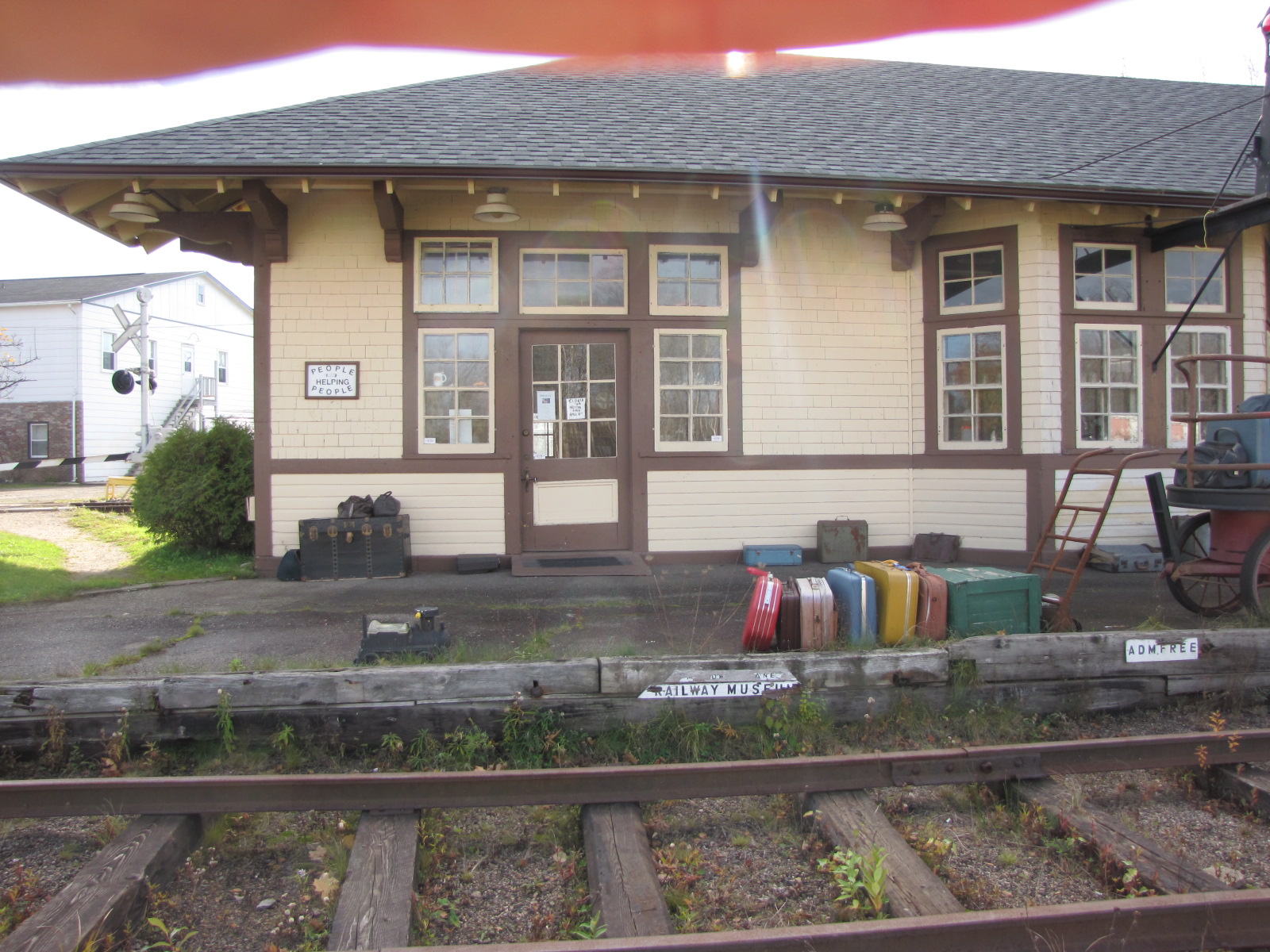

Here's the general width and front side of the building

Width 26' 9". (8M 15cm)
To the windows 9' to middle of edge frame
Window length 9' 7"
----------------------
20' 11" length to bay window
8' 2" length to door
4' 8" length to window edge
----------------------
Bay window side one 4' 5"
Bay window side two 8'
Bay window side three 4' 5"
Length from bay window to edge of Gabel 24' 6"
